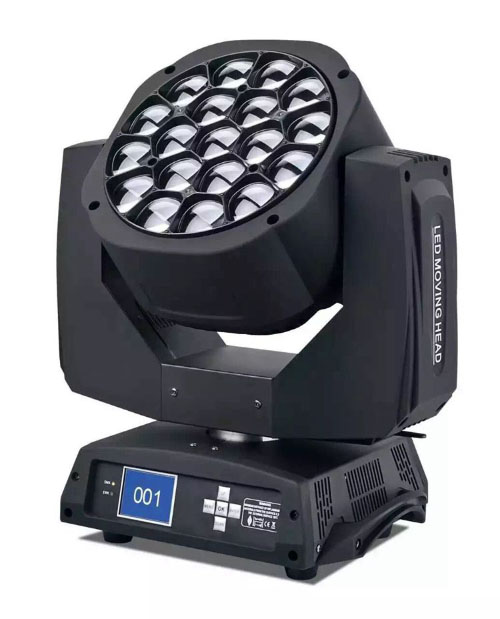

Model: Nineteen Spirally Focused Big Bee Eyes
Power: AC100 ~ 240V 50 / 60HZ, open power supply, power factor: PF ≥ 0.95
Power: 300 W
Light source: a single 15W OSRAM four-in-one lamp beads, a total of 19
Constant flow drive mode: smart fan speeding
Average lifespan: > 50,000 hours
Optical system: beam angle zoom: 4 ° ~ 60 °, using PWMA high quality optical lens
Color System: RGBW Four in One
Effects configuration: Full-area lighting, 65536 level lighting accuracy
Fast Strobe: 1 ~ 25 HZ
Calibration: 0-100% linear Calibration
Macro functions: 64 macro functions are preset
XY axis motion angle: 540 ° X axis, 240 ° Y axis
Control and programming: Five channel control modes: 21CH / 35CH / 78CH / 92CH / 96CH
Standard DMX512 protocol, Art-net Ethernet light control protocol and wireless DMX control (optional)
Menu display: 3.5 inch LCD color display screen.Resolution 128 × 64;Chinese and English languages can be switched at will, the font can be displayed inverted 180 °, and there are two modes of operation: touch and touchless scrolling.
Safety Protection: Overflow, Overpressure, Overheat Protection
DMX signal connection: three-core XLR input / output
Working Location: Install in any secure location
Working temperature: -10 ° C ~ 45 ° C
Weight and size
Product size: 376mm × 253mm × 478mm
Carton packing size: 425 mm x 305mm x 550mm
Net weight: 15.5KG
Gross Weight: 18.5
Protection level: IP20
Other Features:
Temperature sensing detection, intelligent adjustment of light source power
DMX Channel Level Monitoring
XY axis three-phase motor drive
Find information about lamps on LCD screen
Initial brightness settings for each color
Control technology menu or console control light fixture reset
Nineteen Spirally Focused Big Bee Eyes is an innovative eclectic headlamp with a beams,Dyeing, bee-flying beam triple-function, uses high-quality OSRAM REBG four-unit LED bead as the light source, single controllable, 4 ~ 60 ° ultra wide zoom, can be switched from Beam to Wash at will, and a unique rotating secondary lens disc can create a stunning motion effect of the wheel.
型号：十九颗旋转调焦大蜂眼
电源：AC100～240V 50/60HZ，开关电源，功率因素：PF≥0.95
功率：300W
光源： 单颗15W欧司朗OSRAM 四合一灯珠,共19颗
恒流驱动方式：智能风机调速
平均寿命：＞50000小时
光学系统：光束角变焦：4°～60°，采用PWMA高品质光学透镜
颜色系统：RGBW四合一
效果配置：全光域调光，65536级调光精度
快速频闪：1～25HZ
调光：0～100%线性调光
宏功能：预置64种宏功能
XY轴运动角度：X轴540°，Y轴240°
控制和编程：五种通道控制模式：21CH/35CH/78 CH/92 CH/96 CH
通讯协议：标准DMX512协议，Art-net以太灯光控制协议和无线DMX控制（选配）
菜单显示：3.5寸LCD彩色显示屏。分辨率128×64；中、英两种语言可随意切换，字体可倒转180°显示，任选触摸和无触点滚动两种操作方式。
安全保护：过流、过压、过热保护
DMX信号连接：三芯XLR输入/输出
工作位置：任一安全位置安装
工作温度：-10℃～45℃
重量和尺寸
产品尺寸：376mm×253mm×478mm
纸箱包装尺寸：425mm×305mm×550mm
净重：15.5KG
毛重：18.5
防护等级：IP20
其他功能：
温度传感检测，智能调整光源功率
DMX通道电平监视
XY轴三相电机驱动
通过LCD屏幕查询灯具信息
各颜色起始亮度设置
电控技术菜单或控台控制灯具复位
十九颗旋转调焦大蜂眼是一款创新摇头灯具，具有光束，染色，众蜂飞舞的光束三合一功能，以高品质OSRAM REBG四合一LED灯珠为光源，单颗可控，4～60°超大范围变焦，可从Beam到Wash随意转换，独特的可旋转的二次透镜光盘，可创造出美轮美幻的动感效果。
