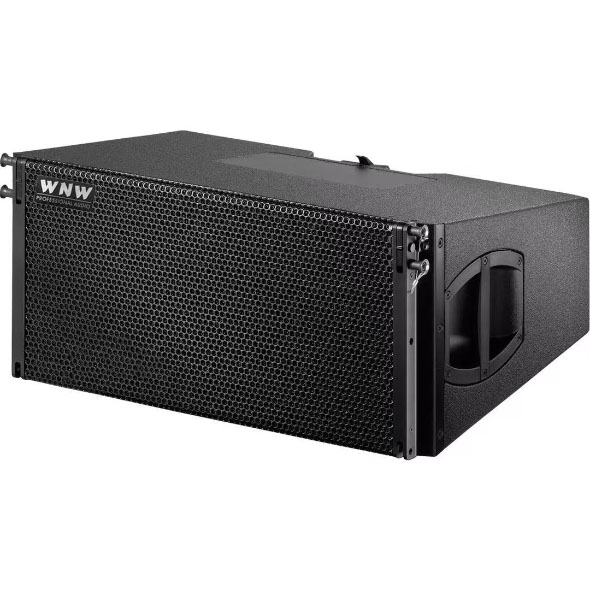

WNW-V8 loudspeaker

Line arrays
High performance 3-way passive line array loudspeaker
 Components 2 x 10"/1 x 8"/2 x 1.4"
 Dispersion 80°
 SPLmax 142 dB
 Weight 34 kg / 75 lb
Product description
The WNW-V8 is a 3-way passive design housing 2 x 10" LF drivers, one
hornloaded 8" MF driver and two 1.4" exit HF compression drivers with 2.5"
voicecoils mounted to a dedicated waveshaping device. The symmetrical
dipolar arrangement of the neodymium LF drivers around the centrally
mounted coaxial MF and HF components allows a smooth overlap of the
adjacent frequency bands in the crossover design. This results in an
exceptional 80° horizontal constant directivity dispersion control nominally
being maintained down to 250 Hz. The mechanical and acoustical design
enables flown vertical arrays of up to twenty four loudspeakers. It can be
used in columns of purely WNW-V8 loudspeakers or combined with
WNW-V12s and / or with WNW-V-SUBs. The WNW-V8 cabinet is
constructed from marine plywood and has an impact and weather protected
PCP (Polyurea Cabinet Protection) finish. The front of the loudspeaker
cabinet is protected by a rigid metal grill backed by an acoustically
transparent foam. Each side panel incorporates a handle, while two
additional recessed grips are provided at the rear bottom of the cabinet.

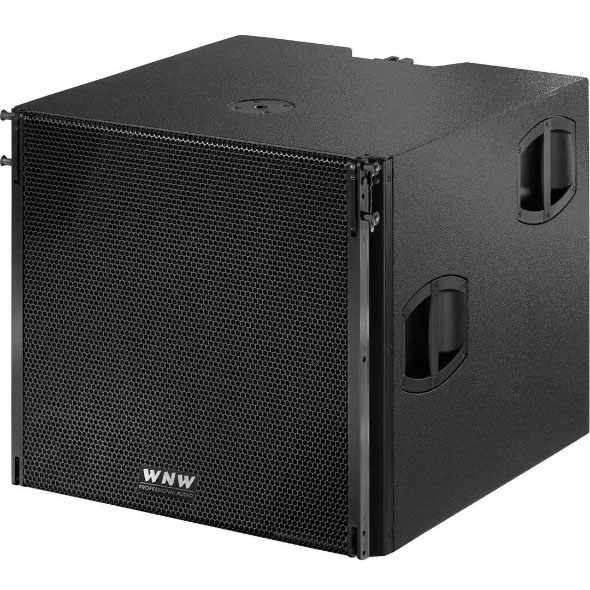

WNW-V subwoofer

Line arrays Subwoofers
High performance flyable cardioid subwoofer
 Components 18"/12"
 Dispersion Cardioid
 SPLmax 137 dB
 Weight 64 kg / 141 lb
Product description
The WNW-V SUB is an actively driven high performance cardioid subwoofer
powered by a single amplifier channel. The WNW-V SUB features integrated
rigging equipment, and shares the same acoustical and visual design as
the WNW-V GSUB, which is intended for ground stacked applications only.
It houses two long excursion neodymium drivers, an 18" driver in a
bass-reflex design facing to the front and a 12" driver in a two chamber
bandpass design radiating to the rear. The cardioid dispersion pattern
resulting from this approach avoids unwanted energy behind the system that
reduces the reverberant field at low frequencies and provides the greatest
accuracy of low frequency reproduction.

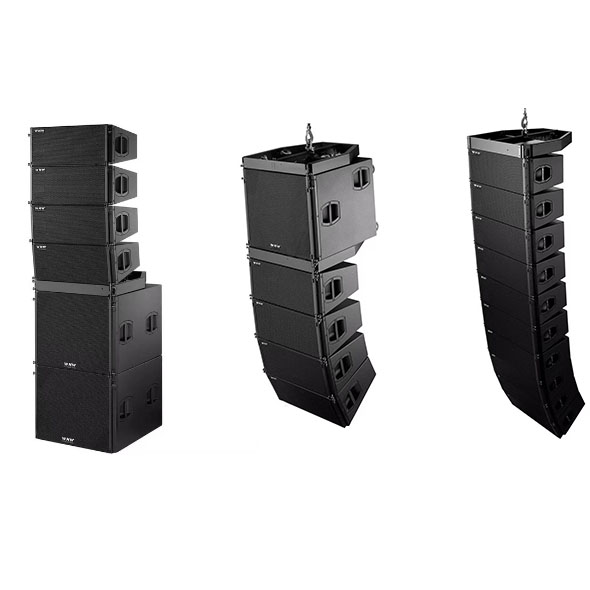

The WNW-V subwoofer can be used to supplement WNW-V8 and WNW-V12
loudspeakers in various combinations, ground stacked or flown, either
integrated on top of a WNW-V8 / WNW-V12 array or as a separate column.
The WNW-V SUB cabinet is constructed from marine plywood and has an impact and weather
protected PCP (Polyurea Cabinet Protection) finish. The front of the loudspeaker cabinet is
protected by a rigid metal grill backed by an acoustically transparent foam. Each side panel
incorporates two handles, whilst the top panel has an M20 high stand flange inserted.
