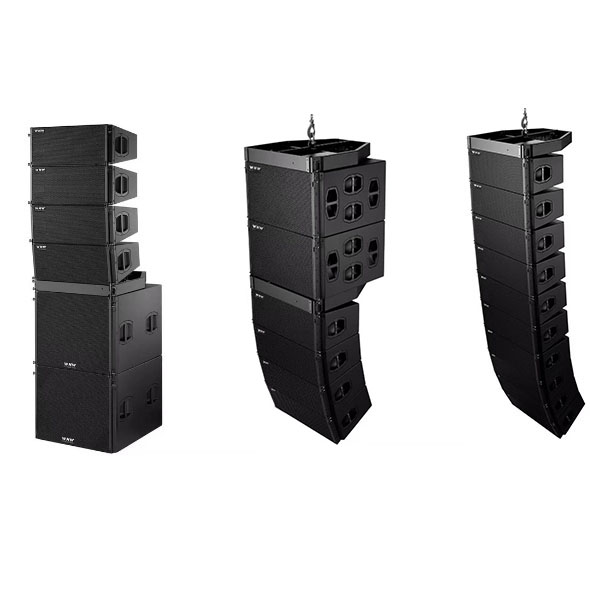

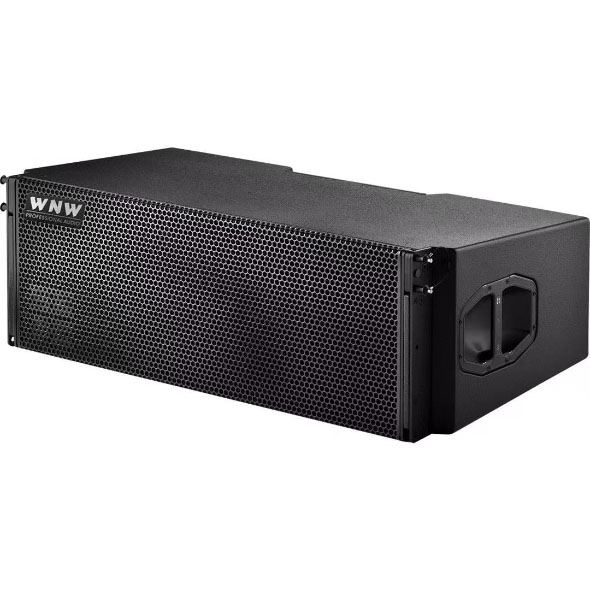

Line arrays Large format 3-way line array loudspeaker Components 2 x 12"/10"/2 x 1.4" Dispersion 80° SPLmax 145 dB Weight 60 kg / 132 lb Product description The J8 is a 3-way design housing 2 x 12" LF drivers, one hornloaded 10" MF driver and two 1.4" exit HF compression drivers with 3" voicecoils mounted to a dedicated waveshaping device. The mechanical and acoustical design enables flown vertical columns of up to 24 loudspeakers to be suspended using vertical splay angles between them of 0° to 7° with a 1° resolution. The cylindrical wave segments produced couple coherently in the vertical plane. Due to the dipolar arrangement of the neodymium LF drivers the exceptional 80° horizontal constant directivity dispersion control is nominally maintained down to 250 Hz. The J8 is acoustically and mechanically compatible with the J12 loudspeaker. It can be used in columns of purely J8 loudspeakers or combined with J12s and / or with J-SUBs. The J8 cabinet is constructed from marine plywood and has an impact and weather protected PCP (Polyurea Cabinet Protection) finish. The front of the loudspeaker cabinet is protected by a rigid metal grill, the side and rear panels incorporate four handles, and two NLT4F/M, EP5 or NL8 connectors wired in parallel are also mounted at the rear.
WNW-J subwoofer

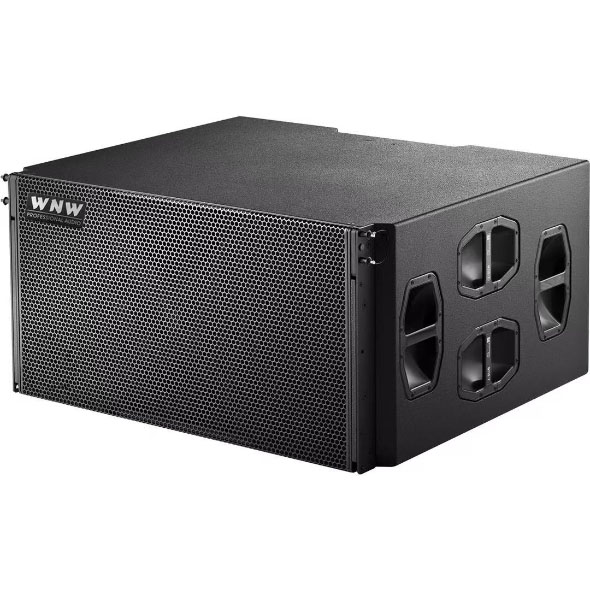

Subwoofers Large format flyable cardioid subwoofer Components 3 x 18" Dispersion Cardioid SPLmax 139 dB Weight 106 kg / 234 lb Product description The J-SUB is an actively driven 2-way bass-reflex design housing three long excursion neodymium 18" drivers, two drivers face to the front and one driver to the rear. The cardioid dispersion pattern resulting from this approach avoids unwanted energy behind the system, which greatly reduces the reverberant field at low frequencies and provides the greatest accuracy of low frequency reproduction. J-SUB cabinets can be used to supplement J8 and J12 loudspeakers in various combinations, ground stacked or flown, either integrated on top of a J8 / J12 array or as a separate column. The J-SUB cabinet is constructed from marine plywood and has an impact and weather protected PCP (Polyurea Cabinet Protection) finish. The front and rear of the loudspeaker cabinet are protected by a rigid metal grill and the side panels incorporate eight handles. Four 100 mm wheels and one EP5 or NL8 connector are mounted at the rear.
